Specialisations: Cutting with a Form Tool

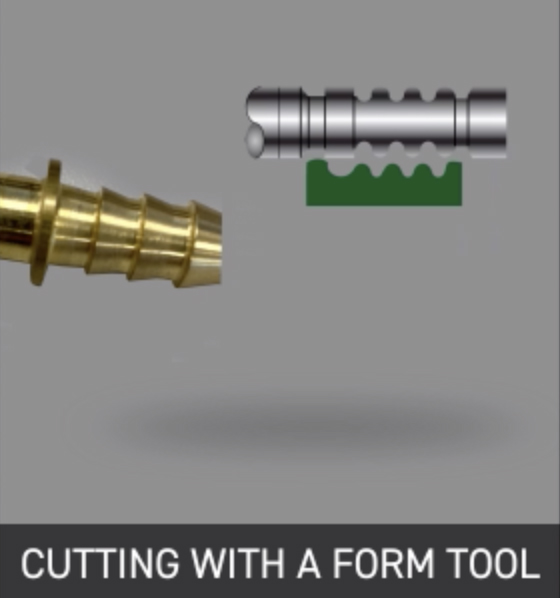

A form tool is defined as a cutting tool having one or more cutting edges with well defined profile or contour that is reproduced as the desired form on the workpiece surface. Form tools utilized for turning applications are classified according to type of cross section.

Straight and flat form tools have a square or rectangular cross-section with the form being along the side or end. These tools are similar in appearance to the turning tools. These are usually set centrally so that they will cut their contour which is identical to the desired contoured of the workpiece. A typical example is a V-notch tool. This type of tool is suitable for making deep straight-sided form grooves. The cutting is restricted type due to the mixed chip flow. Because of the existence of the good surface finish, this type of tool must be operated at very low cutting speed.
